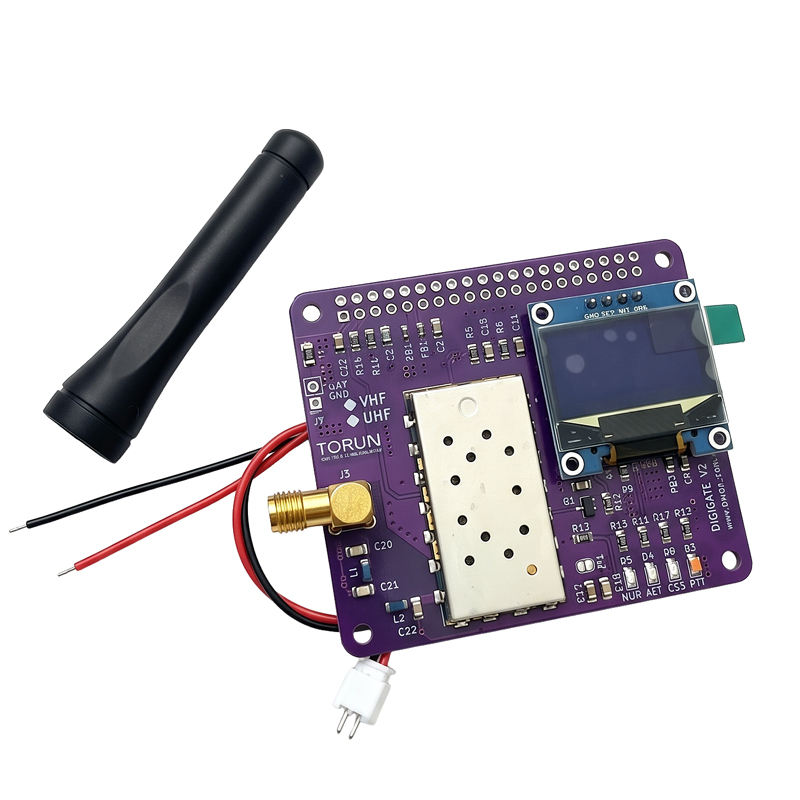

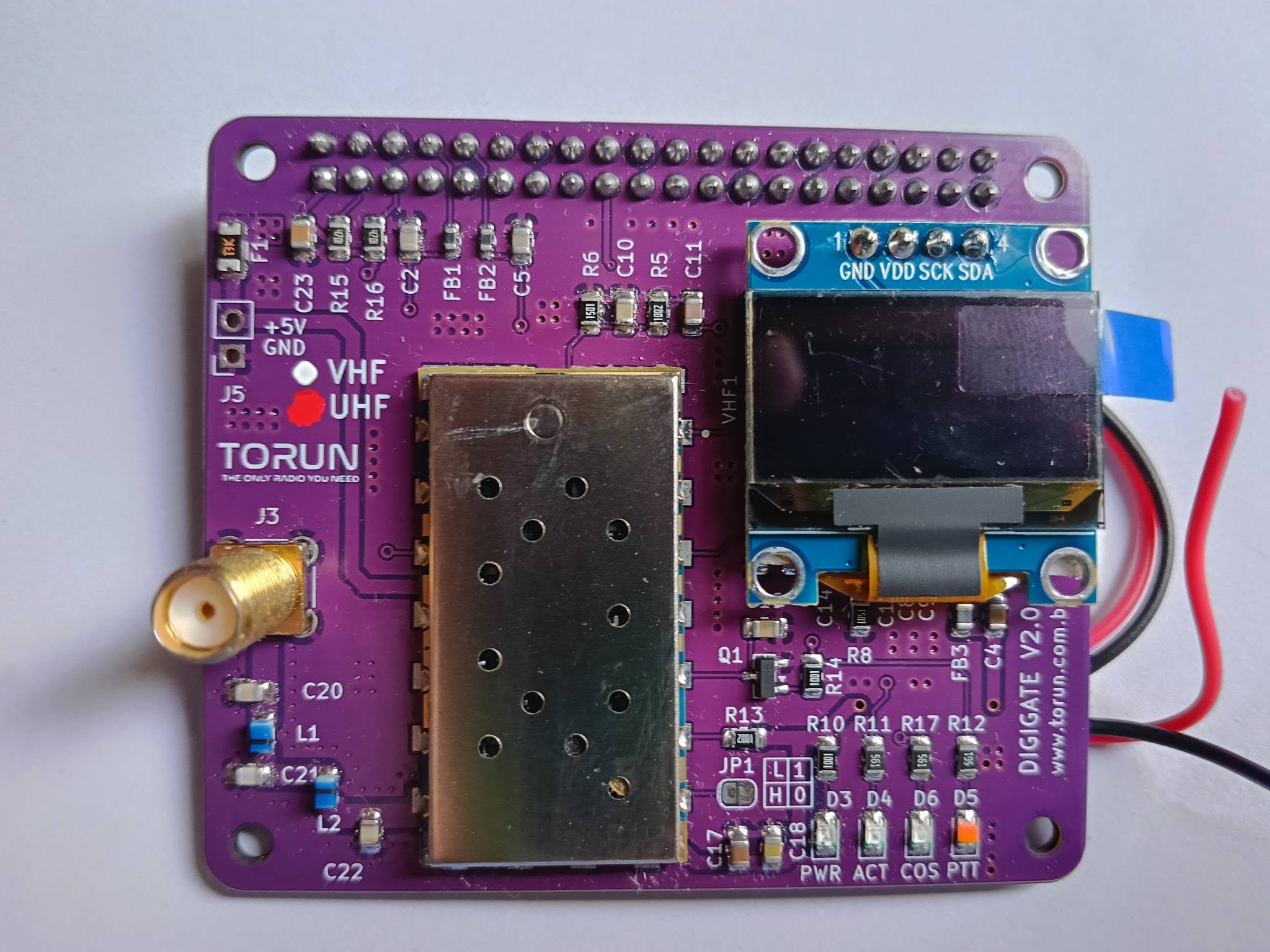

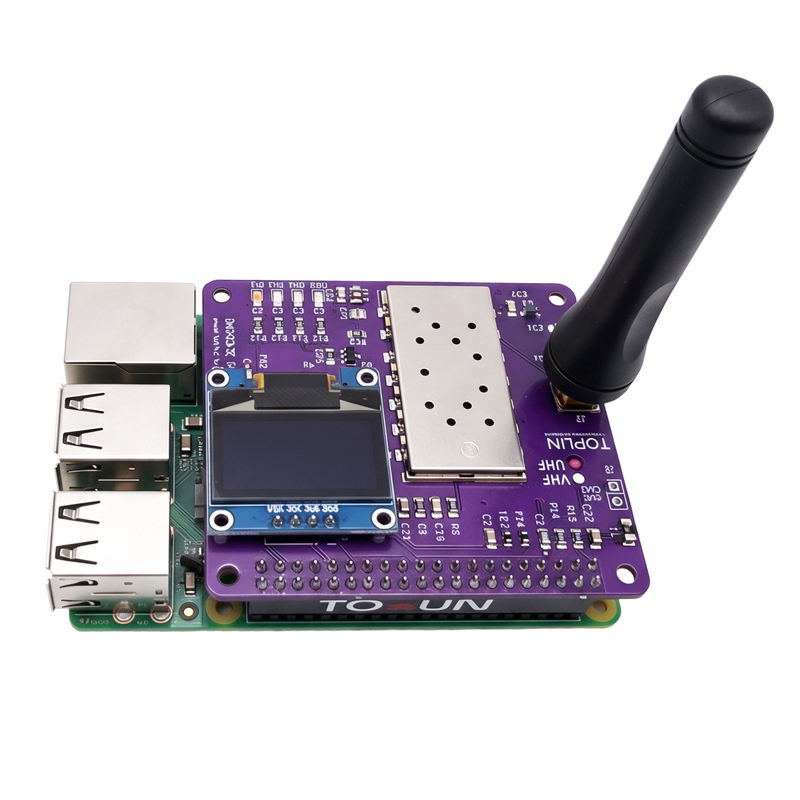

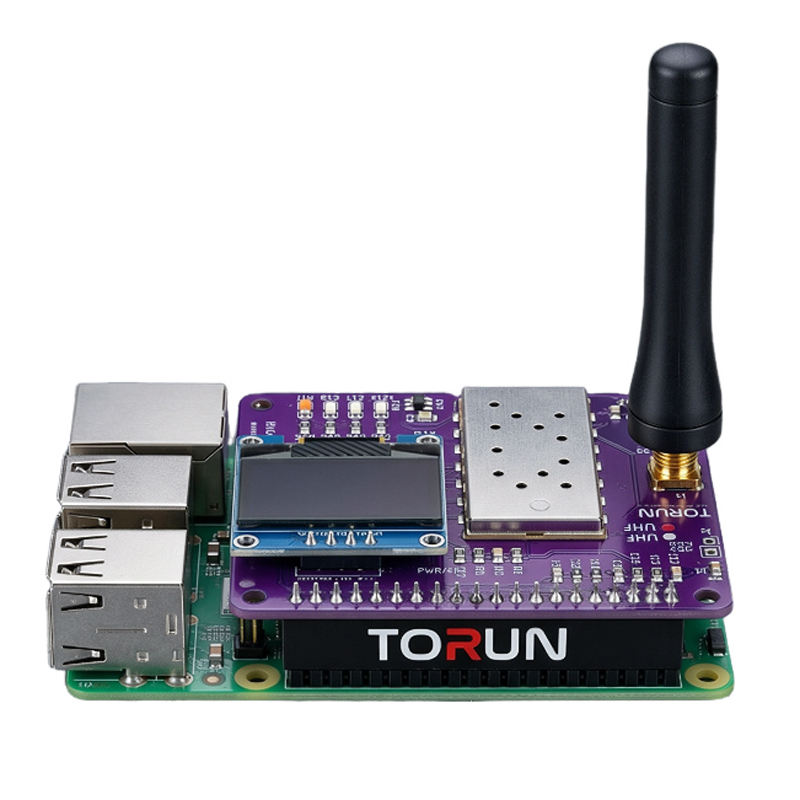

Best Allstarlink/SVXLINK Interface with OLED Display | TORUN DiGi Gate V2

$85 $100

  • Stock: Please select a variant
  • Category : Diy Kits

Upgrade your Allstarlink / SVXlink setup with the TORUN DiGi Gate V2! Proudly made in Bangladesh, this dedicated interface features a built-in SA818 UHF/VHF module, original CM108B chip, and a professional OLED display for real-time node status. Get high performance, 50-ohm impedance matching, and a 6-month warranty.

Add to Cart

  • TORUN DiGi Gate V2 – The Ultimate AllStarLink & SVXLink Node Interface

    Take your Amateur Radio station to the next level with the TORUN DiGi Gate V2, a professional-grade Raspberry Pi HAT designed for both AllStarLink and SVXLink systems. Engineered and manufactured in Bangladesh, DiGi Gate V2 combines a high-quality USB audio interface, an integrated radio module, intelligent protection, and a real-time OLED display into one compact solution.
    Whether you're building a personal node, repeater gateway, or club station, the DiGi Gate V2 delivers exceptional performance, reliability, and ease of installation.

    Why Choose TORUN DiGi Gate V2?

    Unlike conventional radio interfaces that require multiple external components and complex wiring, the TORUN DiGi Gate V2 integrates everything you need into a single Raspberry Pi HAT.
    Powered by the original CM108B USB audio chipset and a built-in SA818 UHF/VHF radio module, it provides crystal-clear audio, reliable GPIO control, and professional RF performance for both AllStarLink and SVXLink.

    Key Features

    1. Integrated SA818 UHF/VHF Radio
    2. Built-in SA818 UHF/VHF transceiver
    3. Eliminates external radio interface wiring
    4. Compact all-in-one design
    5. Original CM108B Audio Chipset
    6. Genuine CM108B USB audio interface
    7. Excellent audio quality
    8. Hardware GPIO support for reliable PTT and COS operation
    9. Intelligent OLED Status Display
    10. The built-in OLED screen displays live system information including:
    11. AllStarLink or SVXLink Node Number
    12. IP Address
    13. Callsign
    14. Wi-Fi Signal Strength
    15. RX/TX Status
    16. Connected Nodes
    17. System Status
    18. Professional RF Design
    19. 50Ω impedance matching network
    20. Integrated Low Pass Filter
    21. Optimized RF performance
    22. Reduced interference
    23. Hardware Protection
    24. Built-in resettable fuse
    25. Over-current protection
    26. Protects both Raspberry Pi and interface board

    LED Status Indicators
    Dedicated LEDs for:


  • Power
  • COS
  • ACT
  • PTT
  • SA818-MENU Compatible
  • Configure your radio directly using the built-in menu system:
  • Frequency
  • CTCSS
  • Bandwidth
  • TX/RX settings
  • Other radio parameters
  • Selectable RF Output Power
  • Hardware Hi/Low power selection for different operating environments.

    Compatible Software

    The TORUN DiGi Gate V2 fully supports:
    ✅ AllStarLink
    ✅ SVXLink
    ✅ Raspberry Pi (64-bit ARM)
    ✅ SA818 UHF/VHF Modules

    OLED Display Installation

    The OLED software is available separately for AllStarLink and SVXLink.
    AllStarLink Installation

    Official Repository
    https://github.com/fahadmieaji/digi_gate_oled


  • Download and install:
    wget https://github.com/fahadmieaji/digi_gate_oled/releases/download/2.1.69/digi-gate-v2-2.1.69_arm64.deb
     sudo apt install ./digi-gate-v2-2.1.69_arm64.deb

    SVXLink Installation
    Download the SVXLink OLED package:

    wget https://github.com/fahadmieaji/digi_gate_oled_svxlink/releases/download/v1/svxlink-oled-protected-1.0.22_arm64.deb
     sudo dpkg -i svxlink-oled-protected-*.deb

    OLED Configuration Menu
    Open the configuration menu:

    sudo digi-gate-menu

    Menu Options
    Change Callsign
    Change Node Number
    Toggle Display Rotation (180°)
    Save and Apply Configuration

    Exclusive Offers

    🇧🇩 Bangladesh Special Price
    📞 Call: +880 1992-233442
    Exchange Offer
    Trade in your old interface and receive up to 25% discount on your new TORUN DiGi Gate V2.
    (Bangladesh only.)
    Warranty
    Every TORUN DiGi Gate V2 includes a 6-Month Replacement Warranty, giving you confidence and peace of mind.

    Why Amateur Radio Operators Choose DiGi Gate V2

    Original CM108B chipset
    Built-in SA818 radio
    OLED real-time monitoring
    Raspberry Pi HAT design
    Clean professional RF layout
    Low Pass Filter
    50Ω impedance matching
    Resettable fuse protection
    SA818-MENU support
    Hi/Low power selection
    Easy installation
    Official support for both AllStarLink and SVXLink
    TORUN DiGi Gate V2
    One Board. One Radio. Complete Control.
    Professional Raspberry Pi HAT for AllStarLink and SVXLink, designed for Amateur Radio operators who demand reliability, simplicity, and performance.
